Quick Details

  • Condition: New
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: VLIFT
  • Model Number: VPT20-15ET
  • Type: Electric Pallet Truck
  • Power Souce: DC Motor
  • Rated Loading Capacity: 1500kg
  • Max. Lifting Height: 1170mm
  • Min. Lifting Height: 85mm
  • Fork Length: 1150mm
  • Fork Width: 150mm
  • Overall Dimensions: 1632*685*1170mm
  • Certification: CE/ISO9001
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Load center: 600mm
  • Load distance (Raised/ Lowered): 889/946mm
  • Wheelbase: 1268/1231mm
  • Service weight (Incl. battery): 205kg
  • Lift height: 115mm
  • Fork dimensions: 55/ 150/ 1150mm
  • Fork spread, min/ max: 560mm
  • Ground clearance, center of wheelbase: 35mm
  • Outer turning radius: 1485mm
  • Type of drive control: DC

Packaging & Delivery

Packaging Details We have a very professional team of packaging and shipping partners, will be your goods quickly and intact delivery to your hands.
Delivery Time 15 days

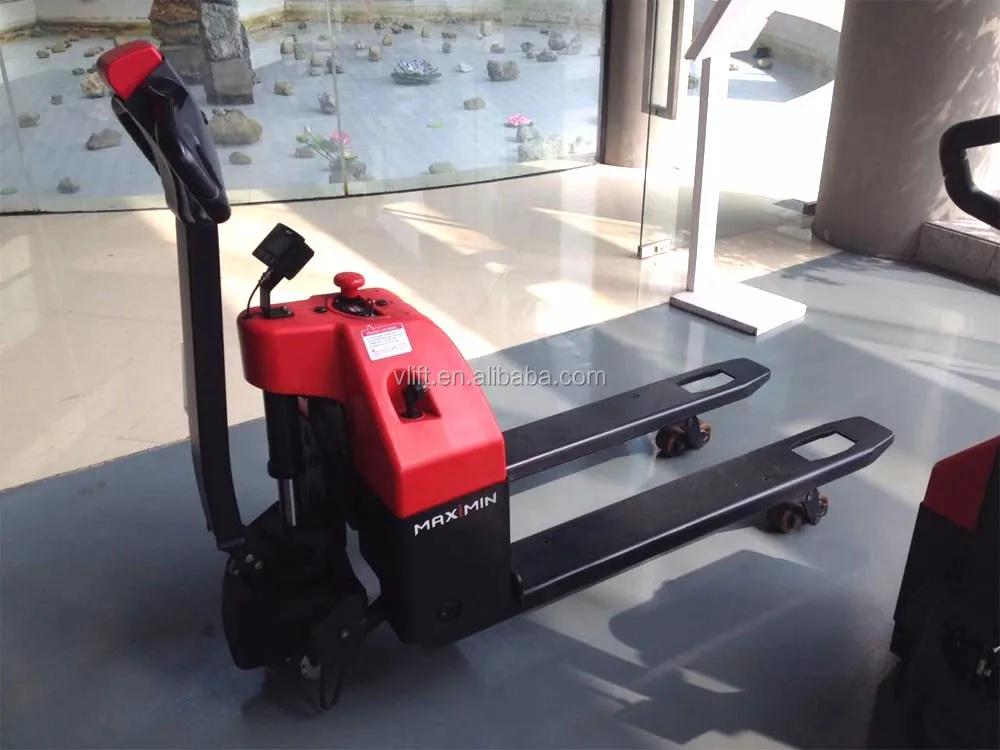

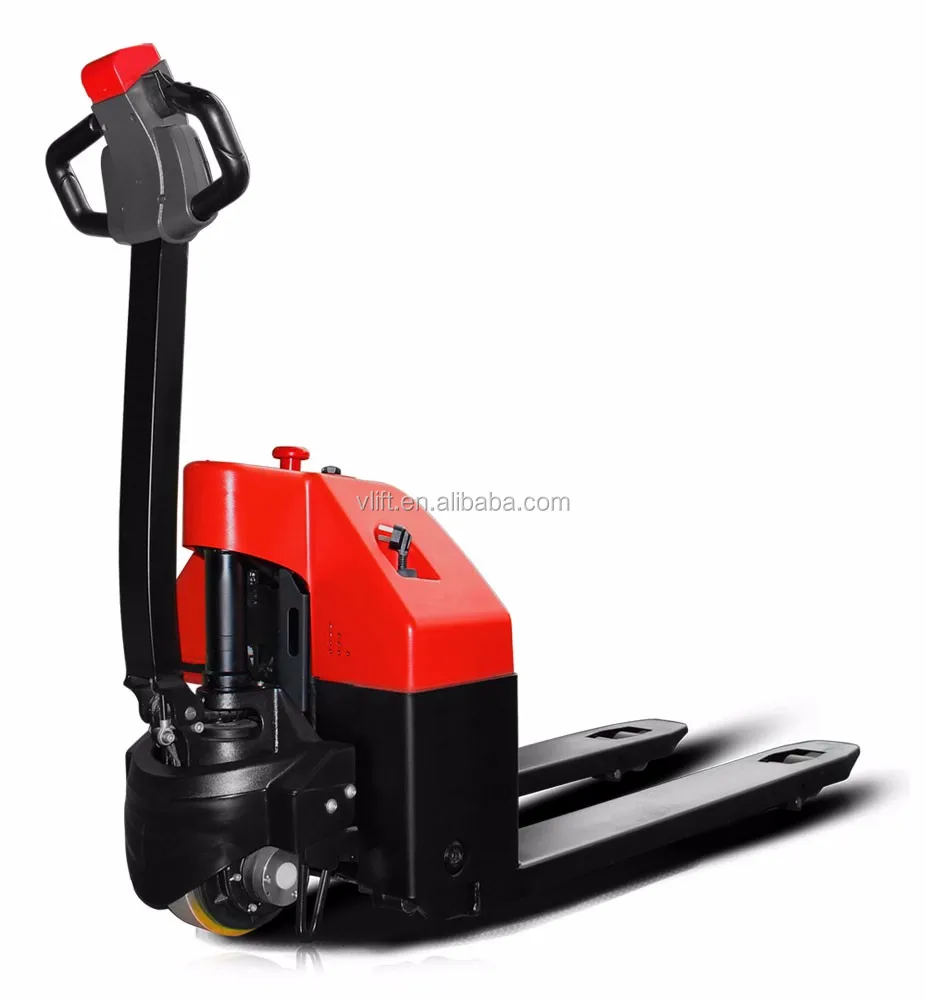

1.5 Ton Electric Pallet Truck

Product Description






 Characteristics
1.2Model designation VPT20-15ET
1.3Drive unit Battery
1.4Operator type Walkie
1.5Load capacityQ (kg)1500
1.6Load centerc (mm)600
1.8Load distance (Raised/ Lowered)x (mm)889/946
1.9Wheelbasey (mm)1268/1231
 Weights
2.1Service weight (Incl. battery)kg205
2.2Axle loading, laden operator/load sidekg500/1005
2.3Axle loading, unladen operator/load sidekg25/180
 Wheels, Chassis
3.1Tyre type PU/ PU
3.2Tyre size, operator side 210x70
3.3Tyre size, load side 2x80x60
3.5Wheels, number operator/load side (x=drive wheels) 1x/ 4
3.7Tread, load sideb11 (mm)410
 Dimensions
4.4Lift heighth3 (mm)115
4.9Height of tiller arm in operating position, min/ maxh14 (mm)750/1170
4.15Fork height, loweredh13 (mm)85
4.19Overall lengthl1 (mm)1632
4.20Length to face of forksl2 (mm)482
4.21Overall widthb1/ b2 (mm)560 685
4.22Fork dimensionss/ e/ l (mm)55/ 150/ 1150
4.25Fork spread, min/ maxb5 (mm)560
4.32Ground clearance, center of wheelbasem2 (mm)35
4.33Aisle width, 1000×1200 pallet crosswaysAst (mm)1739
4.34Aisle width, 800×1200 pallet lengthwaysAst (mm)1939
4.35Outer turning radiusWa (mm)1485
 Performance
5.1Travel speed, laden/ unladenkm/ h4/ 4.5
5.2Lifting speed, laden/ unladenm/ s0.026/ 0.031
5.3Lowering speed, laden/ unladenm/ s0.029/ 0.021
5.8Maximum gradeability, laden/ unladen S2 5 min.%2/ 6
5.10Service brake Electromagnetic
 Drive
6.1Drive motor rating S2 60 min.kW0.65
6.2Lift motor rating at S3 15%kW0.84
6.4Battery voltage/ rated capacity (5h)V/ Ah24/ 85
6.5Battery weightkg45
Battery compartment dimensions l/ w/ hmm265/185/ 215
 Others
8.1Type of drive control DC
Steering type Mechanical
8.4Sound level at operator's eardB (A)74
Certifications



Packaging & Shipping

We have a very professional team of packaging and shipping partners, will be your goods quickly and intact delivery to your hands.





FAQ

1. How long it will take to deliver the product after I pay for it?



Above price valid time is 25 days.





2. What is the payment term?



Our Payment: T/T, L/C, etc.





3. How long is the warranty period any forklift, pallet truck, stacker, scissor lift etc?



Our equipment quality warranty is 1 year or 2000 hours which comes first.





4. What kinds of engine do you have and any gurantee?



Chinese engine, Japanese ISUZU, Mitsubishi, YANMAR, Nissan K21, Nissan K25 engine as per your request. Absolutely high quality.





5. How many colors of forklift you can supply?



Sliver, Orange, Yellow, Red. As Per Your Request.



6. What is the forklift standard configuration and spare parts?

Wide vision mast,standard fork,standard seat,direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.

Our Factory Show

Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables.



Vlift aims at provide you high quality, high performance material handling equipment.


Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
